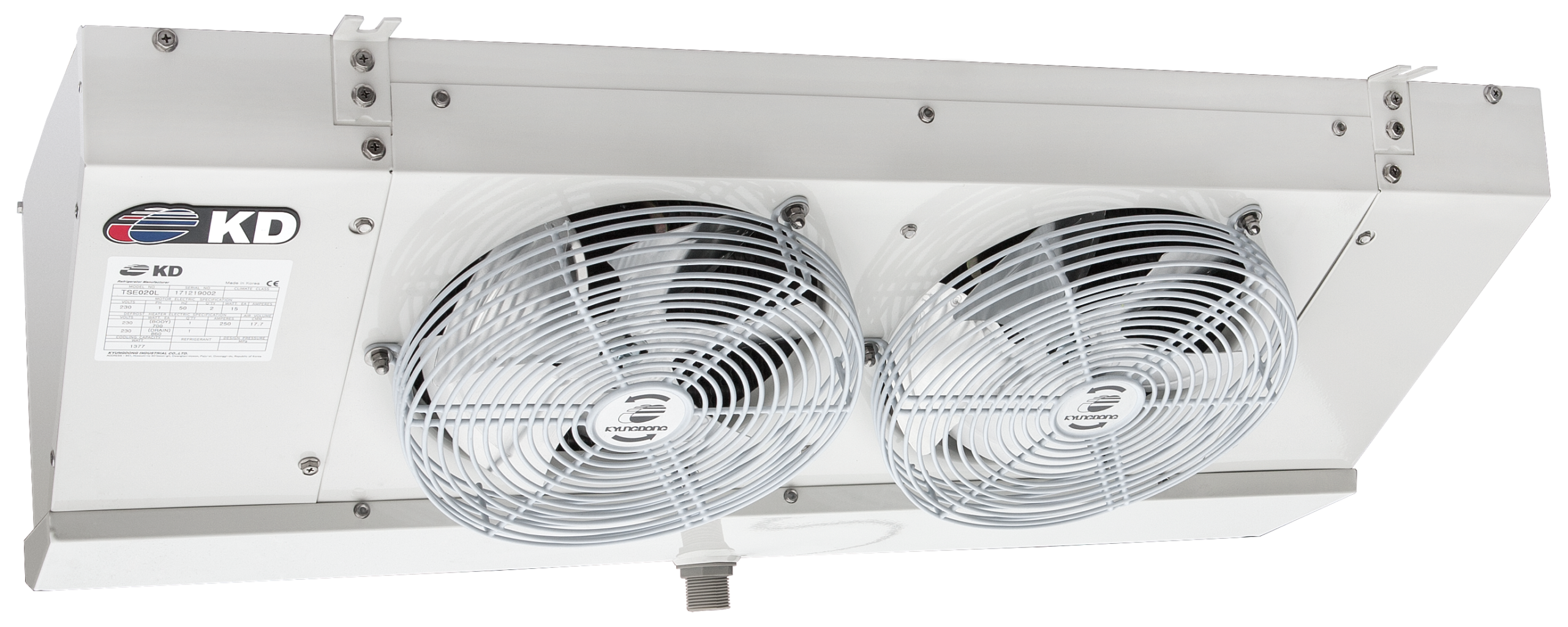

KD TSE Evaporator 6.0 mm

The KD TSE is a compact, low-profile light commercial evaporator designed for small cold rooms, chillers, freezers and other commercial refrigeration applications where available installation space is limited.

With cooling capacities from 1.129 kW to 5.003 kW (SC2 conditions), the KD TSE combines a space-saving design with reliable refrigeration performance, making it particularly suitable for convenience stores, small food retailers, catering applications and compact cold rooms.

Its low-profile blow-through coil design allows the evaporator to be installed neatly at high level, helping maximise usable storage space within the refrigerated area.

Key Features

• Light commercial evaporator range from 1.129 to 5.003 kW
• Capacities rated at SC2 conditions
• Compact, low-profile design
• Space-saving blow-through coil
• 6 mm fin spacing
• Factory-fitted electric defrost
• High-efficiency internally grooved copper tubing
• Durable white powder-coated aluminium casing
• IP66 PVC terminal box
• Designed for small chilled and frozen refrigeration applications

Thermofrost Cryo is the exclusive distributor of KD Evaporators in the UK.
